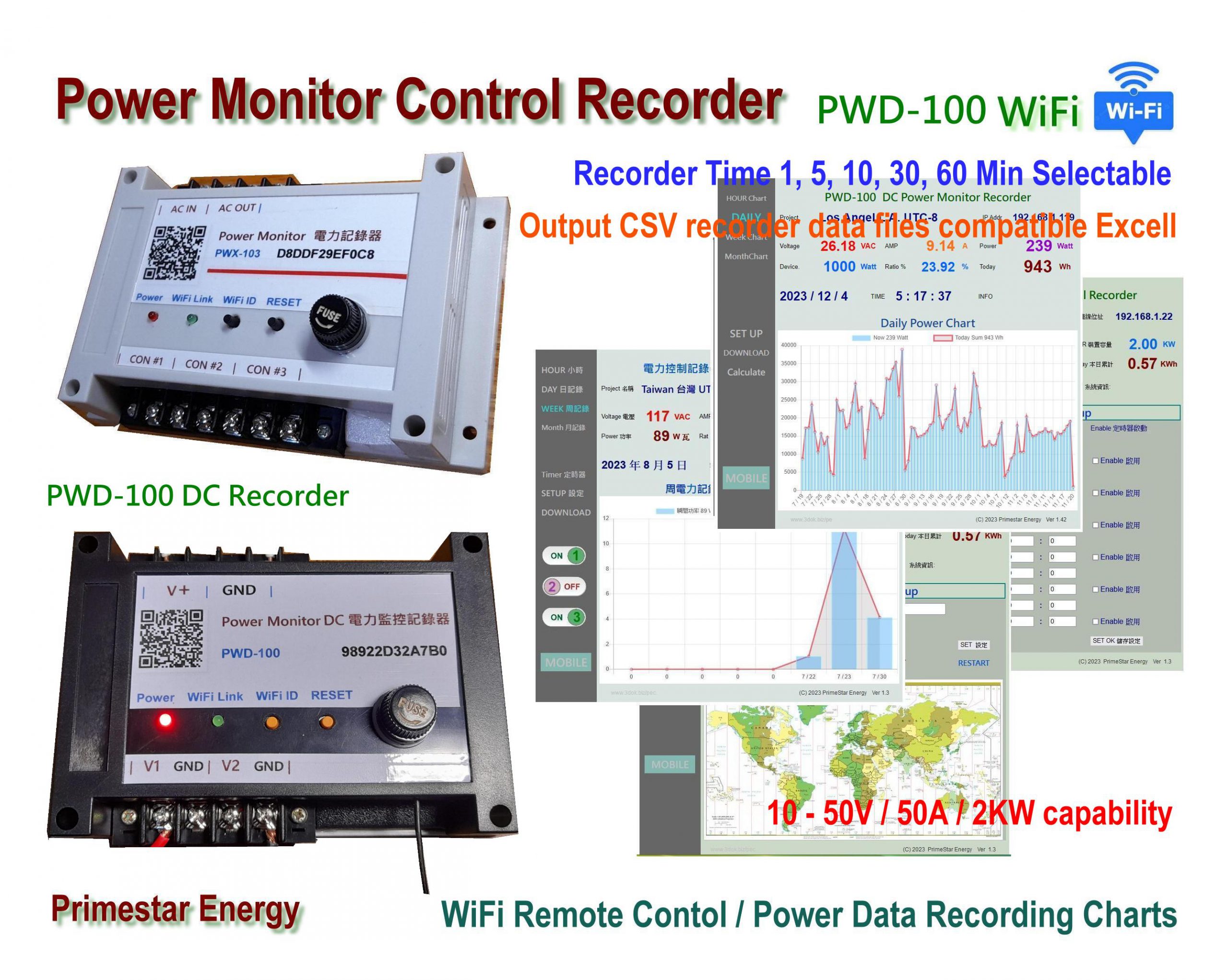

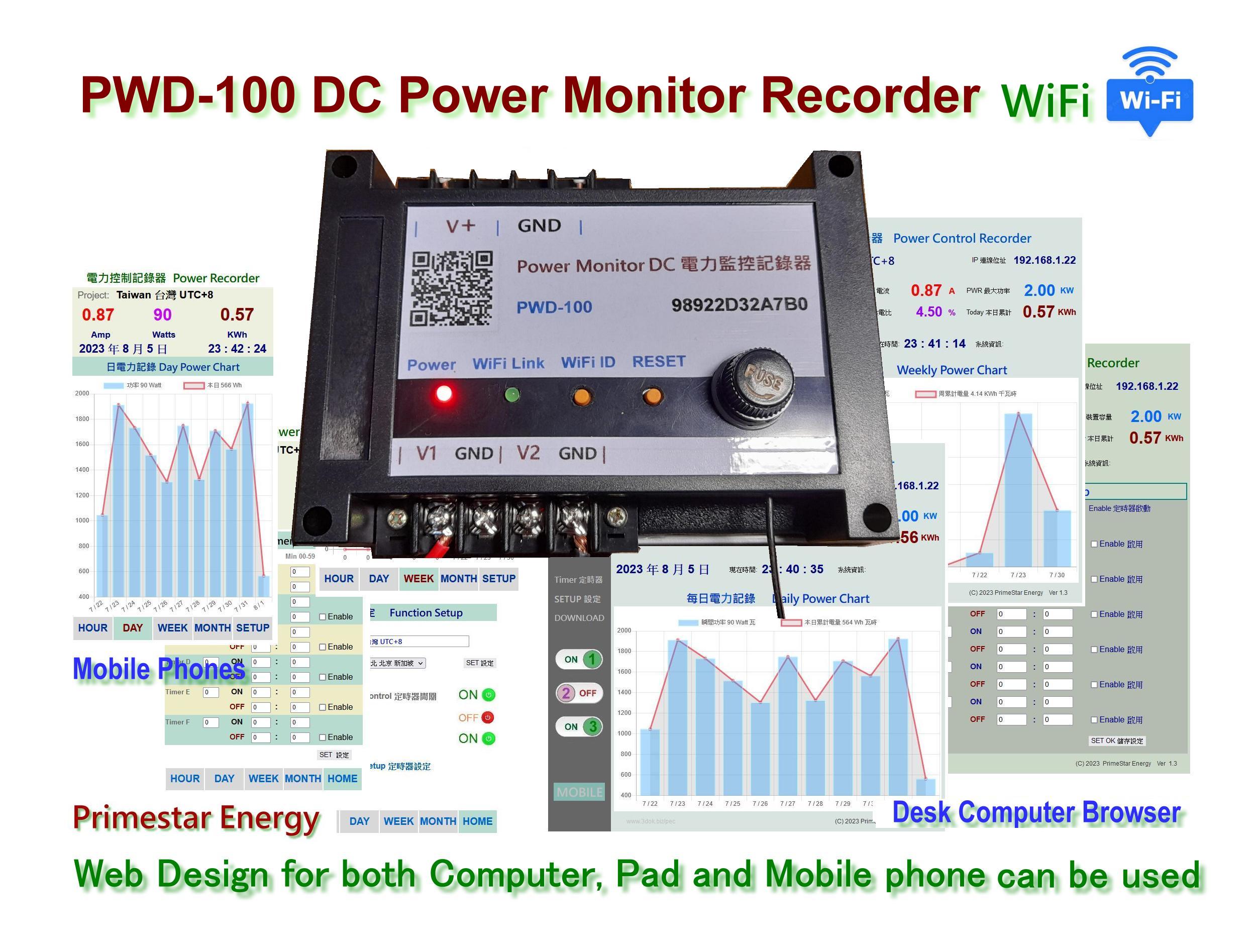

PWD-100 Solar / DC Power Monitor Recorder DC 50V / 50A WiFi Control
2024 New PWD-100 Solar / DC Power Monitor with WiFi Control
For small DC power system 10-50V / 1-50A / 2KW DC solar power system, Easy installation, Scan Top QR Code to Control pages.
.
Features:
- Compact size of DC power controller / monitor / meter / recorder.

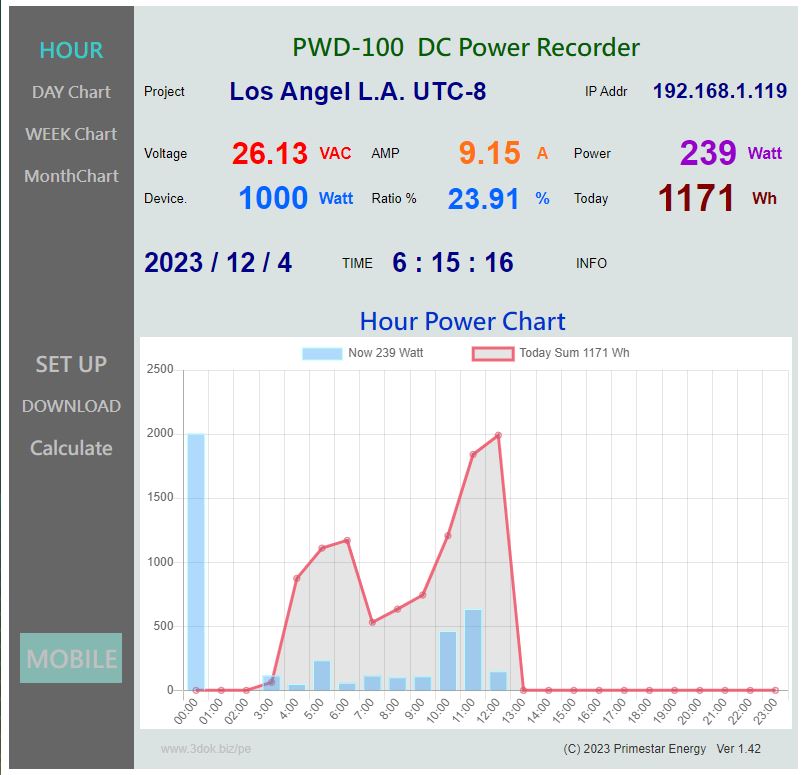

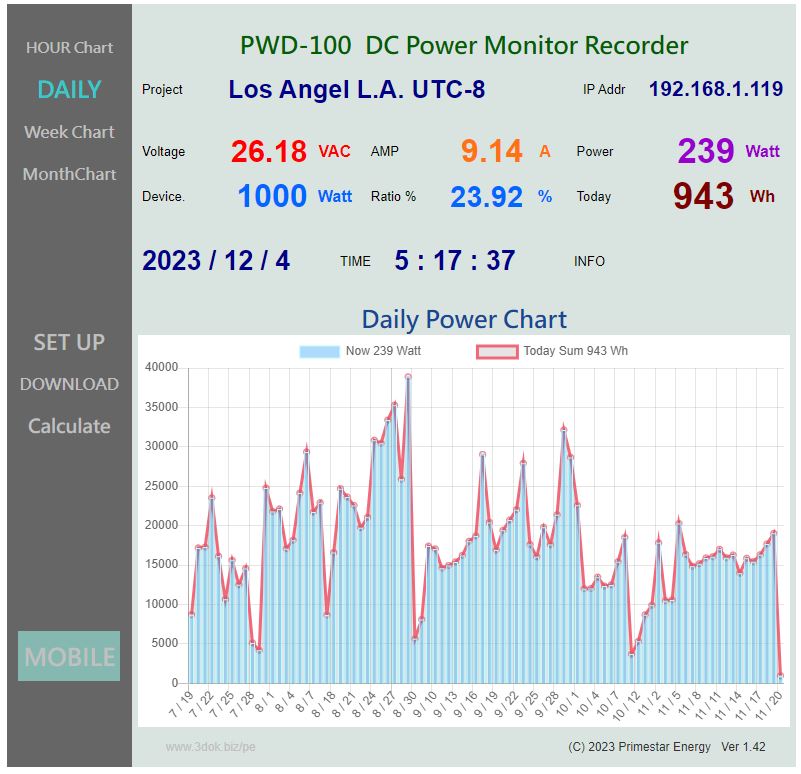

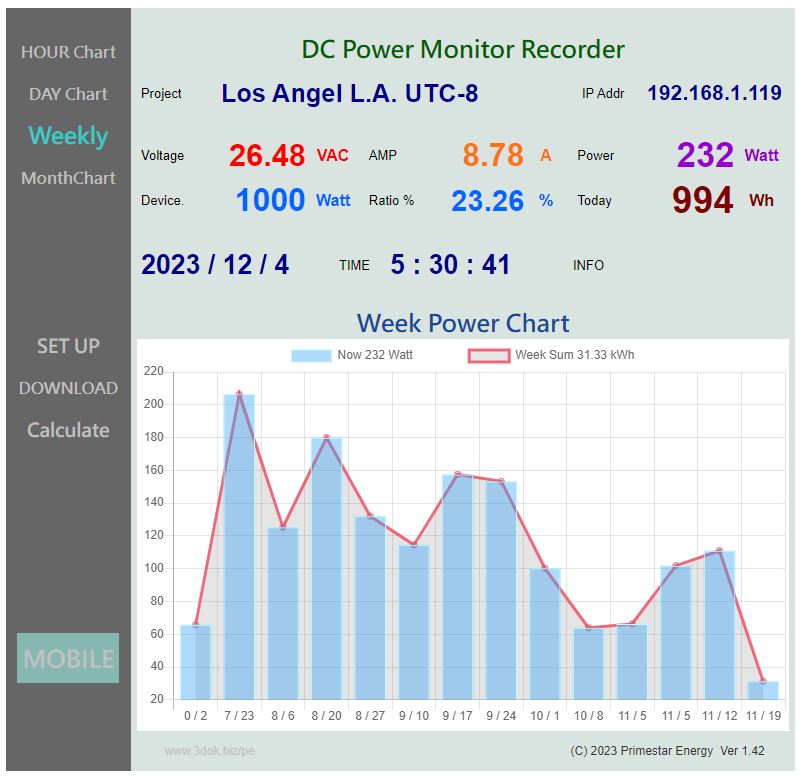

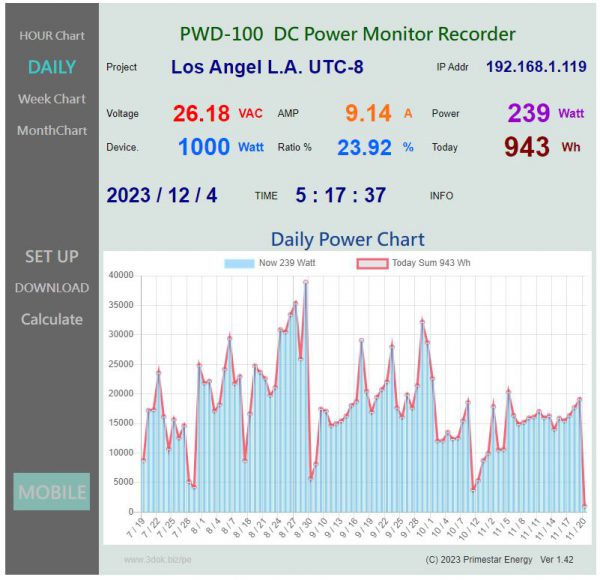

- Power monitor charts in Hour, Day, Week, Month data recorded charts.
- Built-in Hall sensor for No-Lose power measurement.
- Data charts saved daily into flash memory, power lose but data remained.

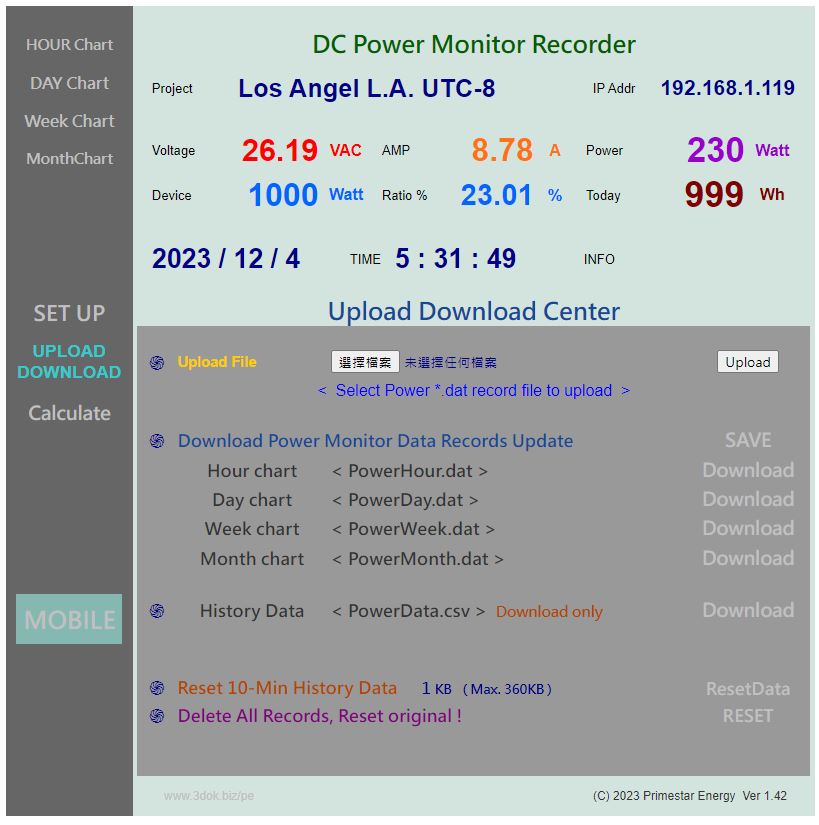

- Web page control data link for Upload, Download
- WiFi power control pages, Desk computer, Pad, Mobile phone can be used.
No need software installation. - TSMC made 32-bits 2-Core 200MHz Xtensa LX6 WiFi Processor
.
.
Easy Installation:

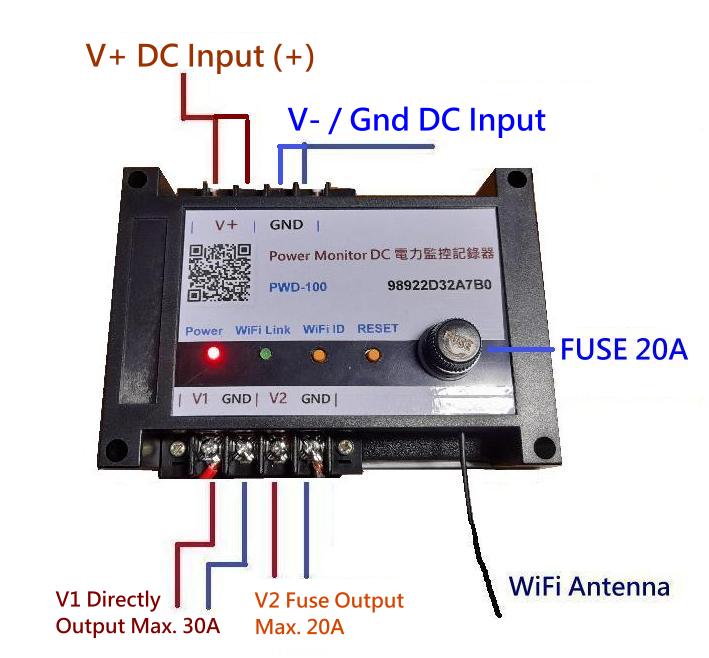

1. Turn off power line, Connected CT Current Transformer Clips.
2. Plug on the DC wires for power circuit connect.

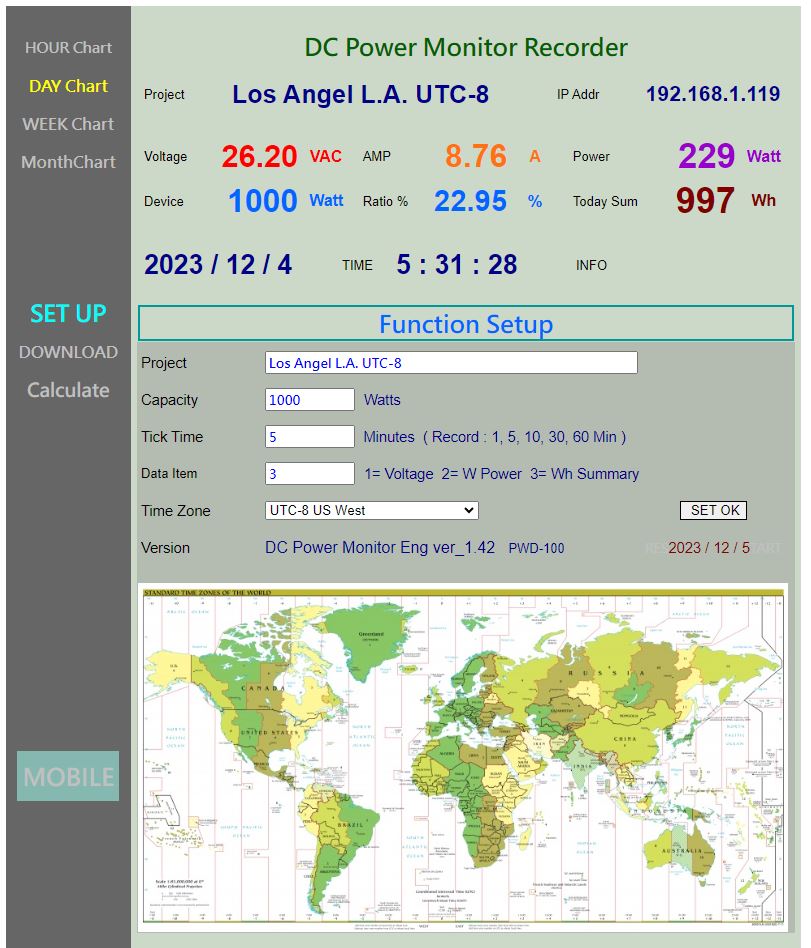

3. First time operation need input SSID / Password to active WiFi link.
4. Scan the QR Code to open the web page into the Monitor Control.
4. Scan the QR Code to open the web page into the Monitor Control.
.
Compact small size, built-in USB 5V low power consumption
Hall Current Sensor, No-lose measurement to power line
Wireless control by web pages, data charts can be upload / download
.
( Note: WiFi Web page only work on local intranet 192.168.x.x , not accessible from far side internet,
User need access web pages inside firewall, not accessible from outside firewall for data safety issued ! )
Specifications:
- Color: White / Black
- Weight: 1 Pound / 450 GW
- Dimensions: 15 (Long) x 10 (Width) x 5 (Height) cm / 6 in x 3.5 in x 2 in
- Power input : DC 10 – 50V / 10 Watt – 20,000 Watt / 1A – 50 Amp
- Web Monitoring: Hour / Day / Week / Month data charts, up to 5-years.
Shipment:
- Original: Primestar Energy Corp.
- Shipment: Ship from Taiwan R.O.C.
- Delivery: 7-15 days, Shipment fee not included.
